Engineering Marvel Chenab: World Highest Railway Bridge
September 20, 2024
Table of Contents
Have you ever imagined riding a train that feels like it’s floating among the clouds? Get ready to experience that dream with the World’s Highest Railway Bridge! This remarkable bridge, soaring high above the ground, creates the sensation of floating as trains cross it. It offers stunning views and an extraordinary travel experience that feels truly magical. Whether you’re an adventure enthusiast or just intrigued by railway engineering wonders, this bridge will make you feel like you’re riding on top of the world. Well, buckle up, because we’re about to explore the World Highest Railway Bridge that turns this dream into reality! 🚂☁️
What is the World’s Highest Railway Bridge?
A Bridge That Touches the Sky

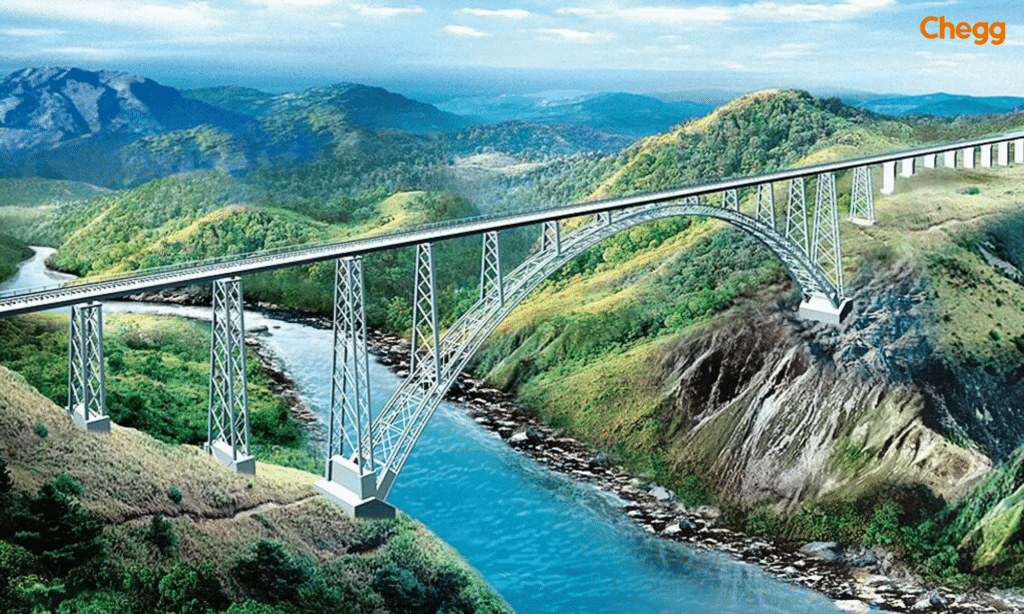

Nestled in the breathtaking Himalayan mountains of India, the Chenab Bridge stands tall as a testament to human ingenuity and determination. It is the world’s highest railway bridge soaring at a jaw-dropping height of 359 meters (1,178 feet) above the Chenab River!
Fun Fact Box 📦
Did you know? The Chenab Bridge is taller than the Eiffel Tower by 35 meters!
History and Background
The world’s highest railway bridge provides insight into its significance and the challenges faced during its construction. This section delves into the origins of the project, its key milestones, and the vision behind this monumental achievement.
1. Local Legends and Ancient Dreams
Long before engineers dreamed up this sky-high bridge, the Chenab River valley was steeped in local legends. Ancient tales speak of mythical beings who could leap across the deep gorge, connecting distant lands. Little did they know that centuries later, humans would create their own “magical” crossing!
2. From Dream to Reality: Engineering Milestones
The idea of connecting the regions of Katra and Banihal in Jammu and Kashmir wasn’t just a flight of fancy. It was a crucial part of the ambitious Udhampur-Srinagar-Baramulla Rail Link (USBRL) project. This project aims to connect the Kashmir Valley with the rest of India’s vast railway network.
Construction of the Chenab Bridge began in 2002, but it wasn’t smooth sailing (or should we say, smooth railing?). The project faced numerous challenges, from harsh weather conditions to complex geological hurdles. But like a little engine that could, the dedicated team of engineers and workers pressed on, turning this dream into steel and concrete reality.
A first-of-its-kind steel Arch Bridge in India, used high-strength steel to withstand the elements. The initial completion target of 2009 faced delays due to safety concerns and unforeseen complexities. Finally, in August 2022, after nearly two decades, the Chenab Rail Bridge was completed.
More than just a record-breaker, the bridge signifies improved connectivity for the region, a testament to India’s engineering prowess, and a symbol of determination. The Chenab Rail Bridge is a captivating story of human ambition reaching new heights.
Engineering and Design of the Chenab Bridge
The engineering and design of the Chenab Bridge are a testament to modern engineering prowess and innovation. As the world highest railway bridge, it stands 359 meters above the Chenab River, making it an architectural and structural marvel. This section delves into the specifics of its structural details, design features, and the advanced techniques used to bring this monumental project to life.
1. Structural Details
The Chenab Bridge boasts several impressive structural details that contribute to its record-breaking status:
Height: The bridge stands at 359 meters (1,178 feet) above the riverbed, surpassing the height of the Eiffel Tower.
Length: The total length of the bridge is approximately 1,315 meters (4,314 feet), including the 650 m (2,130 ft) long viaduct on the northern side, making it one of the longest railway bridges in India.
Material: The bridge is constructed using approximately 25,000 metric tons of steel and concrete, chosen for their strength and durability.
Arch Bridge Design: The bridge features an arch design, which is ideal for spanning large distances and providing strong support against the forces acting on the structure.
The bridge with the longest span in the 5’ft 6”in (1,676 mm) broad gauge railway network
2. Design Features
The Chenab Bridge incorporates several advanced design features to ensure its stability, safety, and longevity:
Arch Design: The bridge’s main arch, made of steel, is designed to withstand high tension and compression forces. The arch provides the necessary support to the bridge deck, distributing the load evenly across the structure.
Wind Resistance: The bridge is designed to withstand wind speeds of up to 266 km/h (165 mph). This is critical given the high-altitude location and the strong winds that can occur in the region.
Seismic Stability: Given the seismic activity in the area, the bridge is equipped with seismic sensors and devices that enhance its stability during earthquakes. This ensures the safety of the structure and the passengers traveling over it.
Corrosion Resistance: Special paint and coatings are used to protect the steel components from corrosion, which is vital for maintaining the bridge’s integrity over time.
3. Construction Techniques
Building the Chenab Bridge required innovative construction techniques due to the challenging terrain and environmental conditions:
Cantilever Construction Method: The arch was constructed using the cantilever method, where each half of the arch was built outwards from the gorge walls and connected at the center. This method allowed for precise alignment and stability during construction.
High-Strength Steel: The steel used in the bridge is of high tensile strength, ensuring it can handle the enormous forces acting upon it. The use of high-strength steel also helps reduce the overall weight of the bridge.
Cable Crane Technology: A cable crane system was used to transport and position the steel segments of the arch. This system allowed for precise placement of materials in the challenging terrain of the Chenab River gorge.
Foundation Drilling: The foundations of the bridge were drilled deep into the rocky bed of the gorge, providing a stable and secure base for the entire structure. This was crucial for ensuring the bridge’s stability and longevity.
The engineering and design of the Chenab Bridge reflect a blend of cutting-edge technology, innovative construction techniques, and a deep understanding of challenging environmental conditions. As the world’s highest railway bridge, it not only stands as a monumental achievement in civil engineering but also as a vital link that will bring significant economic and strategic benefits to the region.
Construction Process
The construction of the Chenab Bridge, the world highest railway bridge, involved meticulous planning, innovative techniques, and overcoming significant challenges. This section details the stages of construction, from initial planning to the final touches, providing insight into the complexities and triumphs of this monumental project.
1. Planning and Preparation
The construction of the Chenab Bridge required extensive planning and preparation to ensure its successful completion:
Site Surveys and Geological Studies: Before construction began, thorough site surveys and geological studies were conducted. These studies were crucial for understanding the terrain, soil composition, and geological stability of the region.
Design Approval: The design of the bridge underwent several iterations and approvals to ensure it met all safety and engineering standards. International experts were consulted to validate the design.
Environmental Impact Assessment: An environmental impact assessment was conducted to minimize the ecological footprint of the construction activities. Measures were taken to protect the local flora and fauna.
2. Foundation Laying
The foundation of the Chenab Bridge was the first major step in the construction process:
Deep Drilling: Deep drilling into the rocky bed of the Chenab River gorge was required to lay a stable foundation. This involved using specialized drilling equipment to reach the necessary depths.
Foundation Piers: Massive piers were constructed to support the bridge. These piers were made of reinforced concrete and were designed to withstand the immense loads and stresses of the bridge.
3. Erection of Arches
The erection of the bridge’s iconic arches was a complex and precise operation:
Cantilever Method: The arch was constructed using the cantilever method. This involved building the arch outwards from both sides of the gorge simultaneously until the two halves met in the middle.
Cable Crane System: A sophisticated cable crane system was used to transport and position the steel segments of the arch. This system allowed for the precise placement of materials in the challenging terrain.
Joining the Arches: In April 2021, the two halves of the arch were successfully joined, marking a significant milestone in the construction. This required meticulous alignment and welding to ensure structural integrity.
4. Deck Installation
Once the arch was completed, the next step was to install the bridge deck:
Deck Segments: The deck was constructed using prefabricated segments. These segments were lifted into place using cranes and carefully positioned on the arch.
Track Laying: Railway tracks were laid on the bridge deck and additional infrastructure such as signaling and communication systems were installed.
Safety Features: Safety features, including guardrails, emergency walkways, and monitoring systems, were incorporated into the deck design.
5. Safety Measures and Quality Control
Ensuring the safety and quality of the Chenab Bridge was a top priority throughout the construction process:
Regular Inspections: Regular inspections were conducted at every stage of construction to identify and address potential issues.
Testing and Validation: Various components of the bridge, including the steel segments and concrete piers, underwent rigorous testing to ensure they met all safety and quality standards.
Monitoring Systems: Advanced monitoring systems were installed to continuously assess the structural health of the bridge. These systems can detect any unusual movements or stresses, allowing for prompt corrective action.
6. Completion and Inauguration
The final stages of construction involved adding the finishing touches and preparing the bridge for operation:
Final Inspections: Comprehensive final inspections were conducted to ensure the bridge was ready for use. Any remaining issues were addressed promptly.
Inauguration: The Chenab Bridge was inaugurated with great fanfare, marking the completion of a monumental engineering project. The bridge is now ready to serve as a vital link in the railway network, enhancing connectivity and bringing numerous benefits to the region.
The construction process of the Chenab Bridge is a remarkable story of human ingenuity, perseverance, and engineering excellence. From the initial planning stages to the final inauguration, every step of the process involved overcoming significant challenges and achieving new milestones.
Chenab Bridge Project Milestones
December 2003: The project gets the green light.
February 2008: Construction contract is awarded.
September 2008: Construction halts due to safety concerns.
August 2010: Construction resumes.
July 2017: Work recommences on the bridge.
November 2017: Completion of the bridge’s arch is anticipated by May 2019.
November 2018: The active construction phase begins.
December 2018: Project completion by year-end 2019 seems doubtful.
August 2019: 80% of bridge construction is done; expected opening in mid-2020.
November 2019: 83% of work completed; new opening target is March 2021.
January 2020: Revised opening date set for December 2021.
April 2021: Arch completion signifies anticipated 2022 opening.
June 2022: 90% of construction completed; bridge to be operational by December 2022.
August 2022: Final joint work finished; bridge inaugurated on 13 August 2022.
February 2023: Track laying commences.
March 2023: Track laying completed, trial run conducted; Jammu to Baramulla route to open by December 2023 or January/February 2024.
The Chenab Bridge is not just an engineering marvel but also a structure of immense strategic, economic, and social significance. It plays a crucial role in enhancing connectivity, boosting regional development, and demonstrating India’s engineering capabilities. This section explores the multifaceted importance of the Chenab Bridge.
1. Strategic Significance
The Chenab Bridge holds considerable strategic importance for India, especially given its location in the Jammu and Kashmir region:
Enhanced Connectivity: The bridge forms a critical part of the Udhampur-Srinagar-Baramulla Rail Link (USBRL) project, connecting the Kashmir Valley to the rest of India. This all-weather link ensures uninterrupted connectivity, crucial for both civilian and military purposes.
Military Logistics: The bridge enhances the Indian military’s logistical capabilities by providing a reliable and efficient transportation route to the strategically sensitive regions of Jammu and Kashmir. This is vital for the swift movement of troops and equipment.
Disaster Response: In times of natural disasters or emergencies, the bridge facilitates quick and efficient relief operations. It ensures that aid and rescue efforts can reach affected areas without delay.
2. Economic Impact
The construction and operation of the Chenab Bridge have a significant economic impact on the region and beyond:
Job Creation: The construction of the bridge created numerous jobs, boosting local employment and providing livelihoods to many. The project employed engineers, construction workers, and support staff, contributing to the local economy.
Tourism Boost: The bridge is expected to become a major tourist attraction, drawing visitors from around the world. Its status as the world’s highest railway bridge will attract engineering enthusiasts, tourists, and photographers, boosting the local tourism industry.
Economic Development: Enhanced connectivity leads to improved trade and commerce. The bridge facilitates the movement of goods and people, promoting economic activities and contributing to the overall development of the region.
3. Social Benefits
The Chenab Bridge brings numerous social benefits to the communities it serves:
Improved Accessibility: The bridge improves access to essential services such as healthcare, education, and markets. Residents of remote areas can now travel more easily and affordably to larger towns and cities.
Cultural Integration: By connecting the Kashmir Valley with the rest of India, the bridge promotes cultural exchange and integration. It helps bridge the gap between different regions and fosters a sense of unity.
Quality of Life: Enhanced transportation infrastructure leads to an overall improvement in the quality of life for residents. Better connectivity means easier access to opportunities, resources, and amenities.
4. Technological and Engineering Achievement
The Chenab Bridge is a symbol of technological and engineering excellence:
Showcase of Indian Engineering: The successful construction of the Chenab Bridge showcases India’s engineering capabilities and innovation. It demonstrates the country’s ability to execute complex infrastructure projects on a global scale.
Inspiration for Future Projects: The bridge sets a benchmark for future infrastructure projects. The techniques and technologies developed during its construction can be applied to other challenging projects, both within India and internationally.
Educational Value: The bridge serves as a valuable educational tool for students and aspiring engineers. It provides real-world examples of advanced engineering concepts, project management, and problem-solving.
5. Environmental Considerations
Despite the scale of the project, efforts were made to minimize the environmental impact:
Sustainable Practices: The construction process incorporated sustainable practices, such as waste reduction and recycling. This minimized the ecological footprint of the project.
Environmental Protection: Measures were taken to protect the local environment, including the flora and fauna of the Chenab River gorge. Careful planning ensured that construction activities did not unduly disrupt the natural habitat.
The Chenab Bridge is far more than just a railway bridge; it is a lifeline that enhances connectivity, supports economic growth, and brings numerous social benefits. Its construction is a testament to human ingenuity and engineering excellence, making it a symbol of pride for India.
Fun Facts and Trivia
The Chenab Bridge, known for its engineering marvel and strategic importance, also has many intriguing facts and trivia that make it even more fascinating. This section will explore some of the lesser-known and interesting aspects of the world’s highest railway bridge.
Taller than the Eiffel Tower: The Chenab Bridge height is 359 meters (1,178 feet) tall, which is 35 meters higher than the Eiffel Tower!
Steel Giant: The bridge was built using over 65,000 tonnes of steel. That’s almost the weight of 10 Eiffel Towers!
Huge Arch Span: The arch of the bridge spans 1,315 meters (4,314 feet). That’s almost the length of four football fields placed end-to-end!
Construction Period: The bridge took several years to construct, with work starting in 2002 and completion expected in 2022.
Cost: The estimated cost of constructing the Chenab Bridge is around $92 million.
Wind Resistant: The bridge can handle strong winds up to 260 kilometers per hour (162 miles per hour), as powerful as a hurricane!
Job Creator: Building the bridge provided jobs for thousands of people in the area.
Blast and Earthquake Proof: The bridge is designed to stay safe even during blasts and earthquakes.
High-Tech Monitoring: It has advanced sensors that track wind speed and structure. If the wind is too strong, a signal turns red to stop trains.
First in India: The Chenab Bridge is the first arch bridge built in India for a broad gauge railway.
Global Fame: The bridge is famous worldwide for its engineering.
Scenic Views: A train ride across the bridge gives stunning views of the Himalayas.
These fun facts show why the Chenab Rail Bridge is an amazing piece of engineering and a great place to see!
Challenges Faced During Construction
1. Structural Challenges: Building a Giant Jigsaw Puzzle in the Sky
Imagine trying to build a massive Lego structure while hanging from a rope hundreds of meters in the air – that’s kind of what constructing the Chenab Bridge was like! The engineers faced some mind-boggling challenges:
Winds that could blow you away: At such heights, winds can be super strong. The bridge had to be designed to withstand wind speeds of up to 266 km/h!
Earthquakes that shake things up: The bridge is located in a seismically active zone. It needed to be strong enough to withstand earthquakes measuring up to 8 on the Richter scale.
Extreme temperatures: From scorching summers to freezing winters, the bridge materials had to endure it all without expanding or contracting too much.
2. Innovative Solutions: Engineering Genius at Work
To overcome these challenges, engineers had to think outside the box – way outside! Here are some of the cool solutions they came up with:
Super-strong steel: The bridge uses special blast-proof steel that can withstand explosions. It’s so tough that it can support the weight of 20,000 African elephants!
Flexible foundations: To counteract the effects of earthquakes, the bridge’s foundations were designed with flexible bearings that can absorb and dissipate seismic energy.
Smart sensors: The bridge is equipped with a network of sensors that constantly monitor its structural integrity. These sensors can detect any signs of stress or damage, allowing for timely maintenance and repairs.
With these innovative solutions, the engineers have not only created a remarkable feat of engineering but also ensured the safety and longevity of the Chenab Bridge (world highest bridge). It stands as a testament to human ingenuity and the ability to overcome even the most daunting challenges.
Top 10 Highest Railway Bridges in the World
Imagine a train gliding across a bridge that soars high above a river or valley. That’s the awe-inspiring feat of engineering behind the world’s highest railway bridge. These incredible structures push the boundaries of design and construction, allowing trains to travel across challenging terrain.
Get ready to be amazed as we explore the top 10 highest railway bridges in the world, reaching dizzying heights!
Rank
Bridge Name
Height
Location
Unique Features
1
Chenab Bridge
359 meters (1,178 ft)
Jammu and Kashmir, India
The highest railway bridge in the world, with a central arch span of 467 meters.
2
Beipanjiang Bridge Shuibai
275 meters (902 ft)
Guizhou Province, China
Crosses the Beipan River, connecting two mountainous regions.
3
Baluarte Bridge
224 meters (735 ft)
Durango, Mexico
A cable-stayed bridge and the highest bridge in North America.
4
Fengyu Bridge
230 meters (755 ft)
Yunnan Province, China
Offers spectacular views of the surrounding mountains and valleys.
5
Puli Bridge
218 meters (715 ft)
Sichuan Province, China
Known for its beautiful design and significant height.
6
Guangzhou Viaduct
211 meters (692 ft)
Guangdong Province, China
Part of the high-speed rail network, providing breathtaking views.
7
Zhujiang Bridge
208 meters (682 ft)
Guangdong Province, China
Connects major cities as part of the high-speed rail network.
8
Najiehe Railway Bridge
256 meters (840 ft)
Guizhou Province, China
An impressive part of the railway network in a mountainous region.
9
Siduhe Bridge
496 meters (1,627 ft)
Hubei Province, China
Primarily a road bridge, one of the highest in the world, showcasing engineering excellence.
10
Jinshajiang Bridge
247 meters (810 ft)
Yunnan Province, China
Part of the railway network crossing the Jinsha River, demonstrating advanced bridge-building capabilities.
Future Prospects
The completion of the Chenab Bridge is a major milestone in India’s infrastructure development. Looking forward, the bridge promises to have an even greater impact, boosting transportation and connectivity in the region. Its significance will grow as it enhances travel and supports future projects. The bridge not only represents a key achievement but also holds exciting prospects for further improving infrastructure in India. This section explores the future prospects of the world highest railway bridge.
1. Enhanced Connectivity
Operational Efficiency: Once fully operational, the Chenab Bridge will improve connectivity between the Kashmir Valley and the rest of India. It will facilitate faster and more efficient transportation of goods and passengers, reducing travel time and costs.
Integration with Rail Network: The bridge is a crucial link in the Udhampur-Srinagar-Baramulla Rail Link (USBRL) project. Its integration into the national rail network will enhance the overall connectivity and accessibility of the region.
2. Economic Growth
Boost to Tourism: The Chenab Bridge is expected to become a major tourist attraction, drawing visitors from across India and around the world. Tourism revenue generated by the bridge will contribute to the local economy.
Trade and Commerce: Improved connectivity will stimulate economic activities in the region. Local industries will benefit from easier access to markets and raw materials, fostering economic growth and development.
3. Technological Advancements
Research and Development: The construction of the Chenab Bridge has spurred advancements in engineering and construction techniques in India. Future projects will benefit from the lessons learned and innovations developed during its construction.
Infrastructure Development: The success of the Chenab Bridge sets a precedent for undertaking similar ambitious infrastructure projects in the future. It demonstrates India’s capability to execute complex engineering projects on a large scale.
4. Sustainability Initiatives
Green Practices: As awareness of environmental conservation grows, future infrastructure projects, including bridges and railways, will likely incorporate more sustainable practices. This includes using eco-friendly materials, minimizing carbon footprints, and preserving natural habitats.
Community Engagement: Future projects will increasingly prioritize community engagement and stakeholder participation. Local communities will have a voice in the planning and execution of infrastructure projects, ensuring sustainable development and inclusive growth.
5. Educational Impact
Learning Opportunities: The Chenab Bridge serves as an educational resource for students and engineers interested in civil engineering, structural design, and infrastructure development. It provides real-world examples of engineering challenges and solutions.
Skills Development: The construction of the Chenab Bridge has enhanced the skills and expertise of Indian engineers and construction workers. This will support the growth of a skilled workforce capable of undertaking future infrastructure projects.
6. International Collaboration
Global Recognition: The successful completion of the Chenab Bridge has garnered international attention and recognition. It positions India as a leader in infrastructure development and engineering excellence, paving the way for collaborations with global partners.
Knowledge Sharing: India can share its experiences and expertise gained from the Chenab Bridge project with other countries facing similar infrastructure challenges. This collaboration can lead to mutual learning and advancements in global infrastructure development.
The future prospects of the Chenab Bridge are promising and multifaceted. From enhancing connectivity and stimulating economic growth to spurring technological advancements and promoting sustainability, the bridge’s impact extends far beyond its physical structure.
Conclusion
The Chenab Railway Bridge, the World Highest Railway Bridge is a remarkable testament to the strong will and relentless drive of individuals. It is located directly on India’s northern border. The concrete arch bridge connects Bakkal and Kauri in the Reasi district of Jammu & Kashmir. It connects Udhampur, Srinagar, and Baramulla. The Chenab railway bridge’s location is very convenient and helps boost the local economy. Furthermore, since it is the highest railway bridge in India, it will also improve tourism.
World Highest Railway Bridge: FAQ’s
Which is the World’s highest railway bridge?
The world’s tallest railway bridge is the Chenab Railway Bridge. It holds the record as the highest railway bridge in India as well. Spanning the Chenab River, this impressive structure reaches remarkable heights, making it a significant engineering achievement. It not only stands out globally but also represents a major milestone in India’s infrastructure development.
What is Chenab Bridge’s height?
The Chenab Bridge stands at an impressive height of 359 meters, or 1,178 feet. This makes it the tallest railway bridge in the world. Its remarkable height adds to its status as a major engineering marvel, showcasing incredible architectural and construction skills. The bridge’s towering presence is a significant achievement in infrastructure, offering stunning views and representing a notable milestone in engineering.
What is Chenab Railway Bridge’s location?
The Chenab Railway Bridge is located between Bakkal and Kauri in Jammu and Kashmir. This strategic position spans the Chenab River, showcasing impressive engineering and construction. The bridge’s location in this region highlights its significance in connecting remote areas and improving transportation. Its placement between these two points makes it a crucial infrastructure element for the region’s railway network.
How can the Chenab River Bridge help the tourism industry?
As the world’s highest railway bridge, the Chenab Bridge is set to become a major tourist attraction. Its impressive height and engineering will draw visitors eager to see this incredible infrastructure. People will be fascinated by the bridge’s architectural feat and the breathtaking views it offers. The Chenab Bridge will undoubtedly attract tourists interested in witnessing one of the most remarkable engineering achievements.
Which is the longest bridge in the World?
The Danyang–Kunshan Grand Bridge holds the title of the longest bridge in the world, while the Chenab Bridge is the highest. The Danyang–Kunshan Grand Bridge stretches across a vast distance, making it the longest, whereas the Chenab Bridge reaches impressive heights, making it the tallest. Both bridges represent remarkable engineering achievements in their respective categories.
Which is the world’s highest bridge?
The Duge Bridge, also called the Beipanjiang Bridge in China, is the highest bridge in the world. Its road deck is situated more than 565 meters (1,854 feet) above the Beipan River. This impressive height makes the Duge Bridge a remarkable engineering feat, showcasing its significant elevation and the extraordinary skill involved in its construction.
What is the cost of the Chenab railway bridge?
The Chenab Railway Bridge was built at an estimated cost of Rs 14.86 billion, which is about $181 million. This substantial investment highlights the scale and complexity of the project. The bridge represents a significant achievement in engineering and infrastructure, reflecting the financial and technical resources dedicated to its construction.
World highest railway bridge is in which state?
The Chenab Bridge, the world’s highest railway bridge, is situated in the state of Jammu and Kashmir, India. This impressive structure spans the Chenab River and stands out due to its remarkable height. Its location in Jammu and Kashmir makes it a significant landmark, showcasing both the engineering prowess and the geographical beauty of the region.
